Manufacturing Execution System

SENOR MES series contains high-performance Touch Panel PC, low-power, web terminals for smart factory applications and industrial monitors

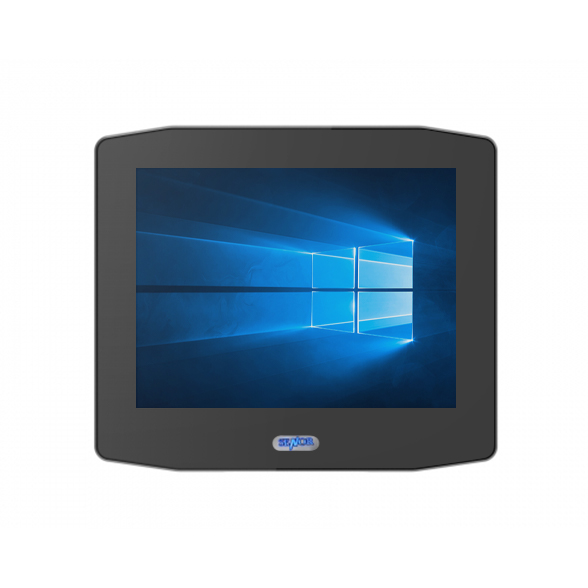

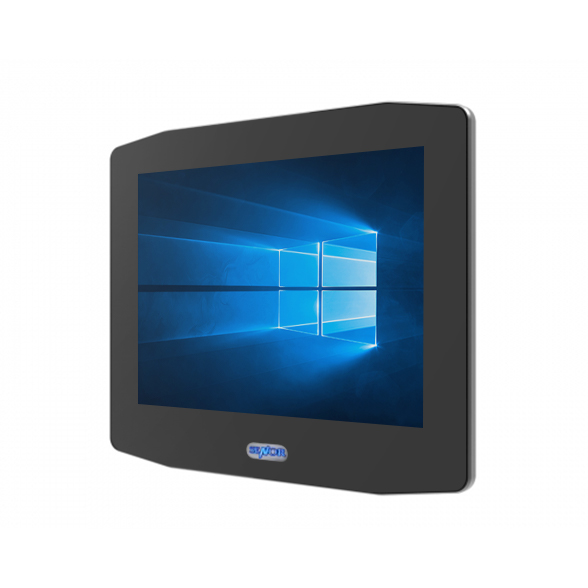

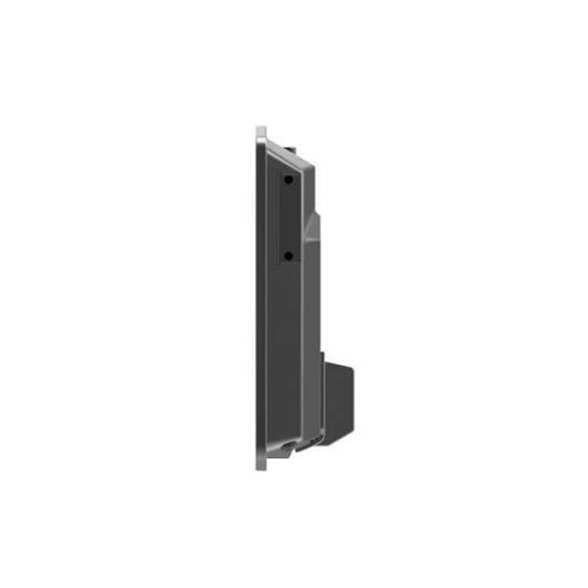

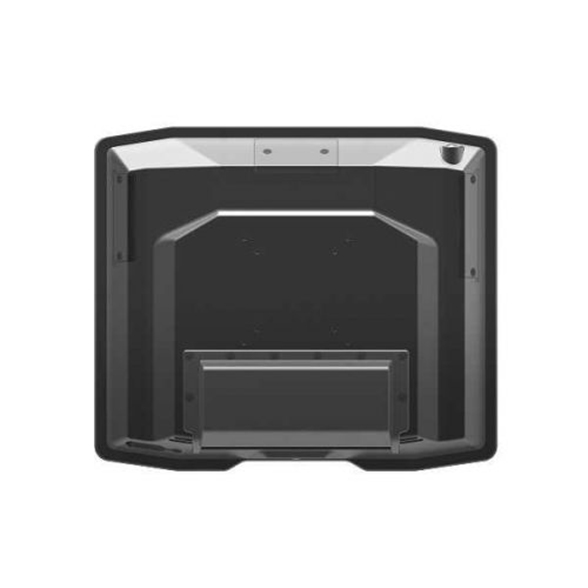

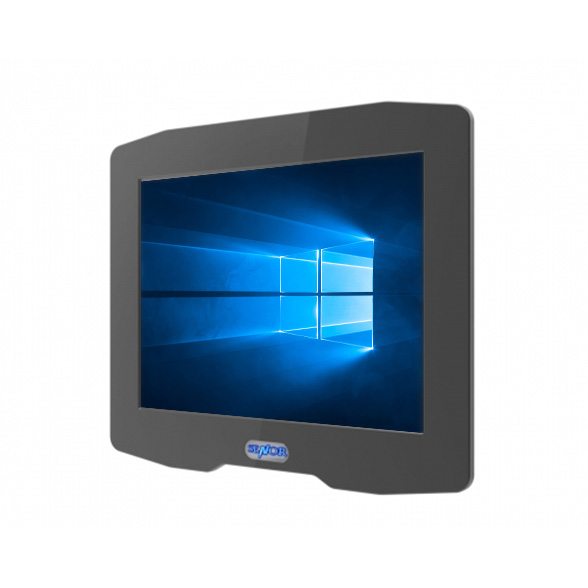

MES 15

The MES Series are the first product combined true flat touch screen and the most important - IP66 protection for whole unit. The MES Series are suitable for Beverage, Packing, Slaughter house, Sanitary ware factory, Industrial Automation, Logistics, Warehousing. Application Industry Key Characteristic
  • Win 7, Win 8, Win 10 IoT 64 bit
  • 15" TFT LCD, 1024 x 768
  • 389 W x 67 D x 334 H (mm), 8Kgs
  • CE/FCC, IP 66 Compliance
  • Senor Waterproof Ip66
  • Touch screen

The SENOR MES 15 series is a robust and integrated Manufacturing Execution System with fanless and ventless design specifically developed to be utilized in harsh environments. Featuring operational effective interface, it aims at enhancing work efficiency and offers safe working environments at the forefront. Its whole aluminum die casting case design without button mechanism aids to increase reliability of the unit without compromising on the functionality. Its compact design is compatible with various mounting solutions and is suitable for various industrial applications such as access control and factory automation.

Key Features

◾ True flat PCT or 5-wire resistive type touchscreen supported
◾ Ruggedized IP66 compliant unit
◾ NANO coating for easy cleaning and maintenance
◾ Aluminum casing with ventless and fanless design
◾ Removable HDD
◾ Chemical treated and strengthen glass touch panel
◾ Shock tested using Procedure 1G
◾ Optional – 2nd display-VGA output
◾ Optional – 2nd LAN and wireless LAN enable
